Safeguarding Digital Library Contents and Users

Digital Watermarking

Fred Mintzer, Jeffrey Lotspiech, Norishige Morimoto
IBM Research Division
Yorktown Heights, Almaden, Tokyo
mintzer@watson.ibm.com, lotspiech@almaden.ibm.com, noly@ibmjp.vnet.ibm.com

D-Lib Magazine, December 1997

ISSN 1082-9873

Introduction

In the traditional manufacturer of paper, wet fiber is subjected to high pressure to expel the moisture. If the press's mold has a slight pattern, this pattern leaves an imprint in the paper, a watermark, best viewed under transmitted light. Now, the old word "watermark" has been borrowed by high technology. Digital watermarks are imperceptible, or barely perceptible, transformations of digital data; often the digital data set is a digital multimedia object. While digital images are most often mentioned in the same breath as digital watermarking, we note that watermarks can be applied to other forms of digital data, for example, videos and music.

We will use the term invisible watermarks to describe digital watermarks that are imperceptible, but which can be extracted computationally. The term data hiding will be used when the imperceptible watermarks themselves contain data.  Often, the computations that extract an invisible watermark require a password of sorts to extract the digital watermark; here, the intent is to restrict extraction of the watermark to authorized parties. The term watermark key will be used to describe such a password. However, we strongly caution the reader to be careful not to confuse watermark keys with encryption keys; they have quite different properties, as will be discussed below.

One of our colleagues is fond of saying that the topic of digital watermarking makes a great graduate student thesis. By this she means that a single individual can conceive a novel watermarking scheme, implement it, and evaluate its effectiveness, all without needing a lot of money or a team of programmers. The ease with which new schemes can be defined has had a predictable effect on the marketplace: there is a glut of watermarking schemes, clamoring for mind share. Sometimes the  hyperbole surrounding this technology can be deafening, and can hide its true implications and applications.

While we are enthusiastic inventors of watermarking schemes, we are careful not to describe digital watermarking as a panacea. We think of digital watermarking as one of a triad of technologies (the other two being encryption and digital signatures), that together offer a reasonable level of copyright protection. Digital watermarking does not stand alone. For example, the new U.S. $100 bills have a traditional watermark, a picture of Ben Franklin. It is ludicrous to think of this as their only protection against counterfeiting. It does, however, "raise the bar"; it is one more feature the counterfeiter must mimic to make a convincing fake. Digital watermarking can raise the bar in the same way.

Digital watermarking is a relatively new and largely unproven technology. In the following section, we will discuss a number of proposed watermarking applications, even while admitting that many watermarking applications remain unproven, including some that we will describe. Indeed, the authors of this paper have been known to disagree about their relative prospects.

Applications for Watermarking

One major application for digital watermarking is to convey ownership information. Implicit in that word is the idea that there may be an adversary who may try to misappropriate the material (by removing the ownership information).  This information may take one of two forms:  the watermark may identify the originator of the material, or it may identify the recipient (the end-user or library) to whom the material was given. On a separate axis, the watermarks may be visible or invisible. All four possibilities make sense in the ownership application, and have been implemented in real systems. Examples:

Figure 1. Page of a fifteenth century manuscript describing medicinal herbs,
   used by permission of the Vatican Library, from an on-line sample at
   http://www.software.ibm.com/is/dig-lib/manuscrpt.htm

Figure 2. Page of a fifteenth century manuscript containing the sketches
   of the architect Giuliano da Sangallo, used by permission of
   the Vatican Library, from an on-line sample at
   http://www.software.ibm.com/is/dig-lib/manuscrpt.htm

Figure 3: A visible watermark identifying the content recepient.
(barcode from Institute of Scientific Information's Electronic Library Project)

The idea of watermarking the recipient is perhaps the foremost application for this technology. Many people wrongly feel that marking the recipient represents an invasion of privacy. It does not. If the recipient plays by the rules, the copyrighted material should never be re-distributed widely. The watermarked material should remain in a private place, unobservable by outsiders. Only miscreants, for example, the people who post copyrighted material on the Web, risk exposing their identities. Of course, there may be cases where recipients are allowed to show the material to the other people (for example, to insert it in their own works). In those cases, cryptography can be used to guarantee that the message in the watermark can only be interpreted by the material's creator.

The rationale for watermarking the owner needs a little more explanation. If you are the owner of set of materials, why do you need to watermark it? Don't you know your own material when you see it? Of course, you do. The reasons for watermarking your material are more subtle. A visible watermark can act as an advertisement or as a restriction. For example, you might be willing to give away low-resolution, visibly watermarked images for free, but  wish to provide high-resolution unmarked versions of the same images for a fee. Even if the free copies were of the same resolution as the priced ones, the visible watermark can dissuade end-users from improperly misusing them.

The rationale for watermarking your own content invisibly is similarly subtle: you may want to "sniff" the Web automatically, for example, looking for misappropriations of your material. Marking allows you to detect your material automatically even if it has been slightly altered. However, for efficiency, you may put the same secret watermark key on every item. Alas, this gives the adversary a large collection upon which to mount a statistically-based attack; see below.

Several inventors have proposed using ownership watermarks to verify the authenticity of material. Most invisible watermarks are designed to be robust -- that is, the watermark robustly survives alterations of the watermarked data. This application requires an invisible, but fragile watermark -- one that is destroyed by any attempt to modify the material. An important question for this application concerns how the detector works. If every end-user needs a detector, they are susceptible to reverse engineering; the adversary can learn how to make the secret fragile watermark. If the detector is located within a secure server, the secret is presumably safe. However, the server will certainly have other ways to verify that something is authentic ("this is mine"). The detractors of authentication watermarks argue that digital signatures are superior for content authentication; the advocates of authentication watermarks argue that there are additional features provided by authentication watermarks which will make this application viable.

Less problematic, in many ways, is an application we call captioning. Here, the invisible watermark is embedded in the material together with associated information: e.g., its name, its author, its date, its point of contact, etc. Note that there is no adversary in this application: the embedded information is useful to everyone. A good example for this application is songs played on the radio. All parties, both the music owners and the radio stations, are interested in an accurate count of exactly what gets played on the air. If the songs are inaudibly watermarked, it enables an automatic "radio listener" monitoring station in each metropolitan region. In addition to the watermarking in music, this application is a big interest to TV stations as well as their sponsors. In local TV stations, the sponsor's mark will be inserted in some part of a commercial. The local TV station can use this invisible watermark automatically to detect and log the commercials that have been played; a third party could even audit it.

Recently, with the advent of digital movies on satellite broadcasts and Digital Video Disk (DVD) media, the movie studios have become very interested in watermarking. The application here is to record an invisible, robust, "never copy", "copy once", or "no more copy" watermarks in each movie. Every recording device will be required to detect them, and refuse to record any movie whose mark prohibits copying. In return, the studios would indemnify the recording device manufacturers against contributory copyright infringement suits. As this article is being published, a sub-group of the Copy Protection Technical Working Group of the DVD Consortium is evaluating various schemes. If this application is deemed to be useful, it may very well become the most popular use of watermarking technology in the public eye. The largest advantage of this watermarking application is the independence from the technology, protocol, or format of the distribution. The mark will be there any time the movie is viewed.

The Diversity of Watermarking Techniques

From the perspective of the content owner, it would be desirable if there were a single watermarking technique that satisfied all of the proposed applications. Unfortunately, this is not possible. The different watermarking applications have different technical requirements; a great diversity of techniques is needed to satisfy them. One dimension of the diversity, perceptibility, has already been noted; some of the applications are effectively satisfied with visible (perceptible) watermarks, while others require watermarks that are invisible.

Another dimension of the diversity is robustness. As was noted above, many of the proposed applications use the watermark to carry ownership information. For these applications, it is often desired that the watermark be hard to remove to inhibit its removal by a malicious party. A lesser level of robustness may be required even when there is no expectation of malicious removal, since lossy image compression, (such as JPEG, MPEG), image reduction, and contrast modification are often part of the process normally used to prepare images for printing (or display). Hence, even within this category, the needed level of robustness can vary. Furthermore, there are other applications, such as content verification, for which maximum fragility (and minimum robustness) is desired. A discussion of watermarking robustness, as it applies to still images, is given in {FM}.

Still another dimension of the diversity among watermarking techniques is the type of multimedia object to be watermarked. All good data hiding techniques exploit perceptual masking. For example, in the case of audio, perception of low-volume tones is masked by the presence of louder tones at slightly different frequencies. Not surprisingly, different media types, e.g. audio, still images, and video, are subject to different perceptual masking, and the best watermarking techniques take advantage of the perceptual masking of the object to be marked. The representation of the object can also add a dimension to the diversity. Compressed objects, such as JPEG images, have had a great deal of their redundancy removed. The sensitivity of a compressed object's appearance to a change in its data is intrinsically different than it is for an uncompressed object, and different techniques are needed to best exploit perceptual masking in the presence of a different sensitivity relationship.

Other dimensions of the diversity of watermarking techniques concern the amount of data that is carried and the form of that data. (It turns out that watermarking can encode more information than just its "presence" or "absence".) The amount of data that can be carried by watermarks used for copyright protection is often small, as this data is carried redundantly to create robustness. The amount of data that can be carried by watermarks used for applications such as captioning can be large, as little robustness (or redundancy) is required. Lastly, we note that a watermark is just digital data, but it can be used to represent images, numbers, text, other multimedia objects, or a host of other things.

Resistance to Attacks

In many watermarking applications, it is desired that the watermark be hard to remove; in other watermarking applications, it is desired that it be hard to forge a watermark. Let us now assume that a hacker, Harry, is trying to remove (or forge) a digital watermark for his own nefarious purposes. What are his chances? Actually, they are often pretty good. (Examples of some attacks are described in {SC}). Indeed, the underlying question is often not whether Harry can do it, but whether it is worth the effort.

First, we recognize that Harry will have access to normal image processing tools. He will be able to sharpen, smooth, compress, color adjust, clip, and resize the image. (The analogous tools will be available for audio and video content.) It is likely that each of these processes will reduce the strength of the watermark. Note that these tools and transformations may also be innocently applied by people who have no idea that the content is watermarked and unknowingly attack the watermark.

Ironically, the most common operations, clip and resize, create the most difficult problems for the automatic detection of most watermarks. Fortunately, automatic detection is not needed in all applications. As an example, let us suppose I am a publisher, I have discovered a piece of my content being illegally redistributed on the Web, and I want to discover which library was the custodian of the particular copy. Here, a fully-automated procedure is not required. I can look at the item, see what resizing or rotation has been applied, and manually undo it before I test for the watermark.

So, Harry can be assumed to possess some general techniques to attenuate watermarks. He may also have specific information about how the watermark was applied. Any specific information that Harry has about the watermark can be used against it in an attack. Indeed, the following line of attack should always be considered: detect the watermark, estimate the watermark, invert the watermark application process to undo it. If Harry knows what the watermark is and how it was applied, we should assume he may exactly remove it.

To add a degree of unpredictability to the watermark, many schemes apply the watermark under a key, a randomization of the source noise pattern (or some other secret) that must be known in the detector before it can read the watermark. This term "key" is borrowed from cryptography, but any self-respecting cryptographer would wince to see it used in this context. A cryptographic key is a secret that is extremely difficult to calculate even if you:

  1. Completely understand the cryptographic algorithm, and
  2. Have enormous amounts of data encrypted in that key to examine, and even
  3. Have examples of data encrypted in that key for which you know the unencrypted version.
Today's watermark keys could never survive such scrutiny. Even worse, in some applications, the detector is widely distributed to the end-users. This is true in many instances of the authenticity application, and it is true of the "do not copy" watermarks used in devices for recording movies. In these cases, Harry can obtain the detector and reverse-engineer the key. But perhaps the detector is in hardware or obfuscated software and too difficult for Harry to understand? He can also accumulate large amounts of content watermarked with the same key and hope that statistical analysis will reveal the key. Or, in another attack described by Cox and Linnartz {IC}, Harry uses the detector as a "black box." By performing numerous carefully-designed tests on a "just barely watermarked" copy, and by making small changes to see if the watermark disappears, in many schemes he is able to calculate the key. Alternatively, if the watermark key is short, Harry can just try all the possibilities. Or, if the key is circulated to end users, Harry may simply acquire it from one of them.

Nonetheless, many inventors make sweeping claims about the security of their particular watermark. At the heart of most of these claims is an assumption that the watermark cannot be detected because it is not possible to distinguish between small "noise" introduced by a watermark from the naturally occurring noise in the content. Often, this assumption is easy to disprove. Merely ask the proponent: if the content is compressed, does it get larger after the watermark has been applied? If it does, there is at least one model -- namely, whatever model the compression scheme uses -- which would help an attacker decide between watermark noise and natural noise. Of course, the indication might be very weak, so this alone rarely yields a productive attack. It does, however, discredit most "proofs" of absolute watermark security.

And what about collusion? What if Harry has a bunch of friends, and they all have differently watermarked copies of the same item? The simple average of all these copies starts to approach the true, unmarked item. Now weak attacks that normally destroy too much of the image, suddenly become more fruitful. The value of the watermark is already radically attenuated by the averaging, and so much less needs to be done to completely eliminate it.

So where do all these attacks lead? The wildest proponents of digital watermarking seem to envision a world where watermarks will be used to establish guilt in a court of law -- the new digital DNA. (One company has even taken out a trademark to evoke this phrase.) If watermarks are not proof safe against attack, then a watermark can always be refuted in court by claiming it to be a forgery1. There is an even more fundamental question, raised by Cynthia Dwork {CD}. Does the presence of my watermark on a piece of pirate content mean that I have necessarily done anything wrong? For example, at our site everyone's files are on the network. I routinely share all my files with my close colleagues. What copyright have I violated by putting my legitimately obtained copy of a piece of content in my file system? (In my site I have no other place to put it, anyway.) Of course, my colleagues, if they were to copy the item from me, might be violating a copyright. But I claim I have not done anything wrong; my watermark in their possession is not a proof of my guilt.

In the end, we feel the primary value of watermarks depend not on legal proofs, not on technical security measures, but instead on economic terms. I do not have to prove something in a court of law to sever an ongoing voluntary relationship -- to revoke somebody's library card, for example. That is the threat. The attacker's side, similarly, is driven by economic terms. Harry can eliminate a watermark, but it may take him more effort than the value he will obtain by doing so.

Specific Watermarking Technologies

Visible Image Watermark

The visible image watermark, available with IBM Digital Library, embeds a visible mark onto a gray or color photographic image. An example of a visibly watermarked image is given in Figure 1, which shows a page of a Vatican Library manuscript, darkened with a watermark that was modelled on the Vatican Library's seal.  This technique was developed at the request of the Vatican Library as part of a project that made images of their manuscripts available through the Internet {FM2}; here the intent was to make clear, to all who would see the images, that they were the property of the Vatican Library, without detracting from their utility for scholarship. This use of the watermark, like a copyright notice, identifies the ownership of materials and reminds viewers of their limited copying rights. We note that the visible watermark has also been used to mark images owned by the Klau Library of Hebrew Union College, as discussed in {HG}; here the intent was to provide a reference to the Klau library within the images, so that anyone desiring to see the scanned manuscripts would know where they might be found.

This watermark has several features that distinguish it from other visible watermarking techniques. One constrains the watermarking process to change only the brightness, and not the color, of the image to be marked; this is intended to make the watermark less obtrusive. Another uses a model of the human visual system to adjust the prominence of applied watermarks; this is intended to produce more uniformly prominent watermarks when the watermarking is applied in batch mode. A description of the technique is given in {GB1}.

Reversible Visible Watermarks

Another form of visible image watermarking developed at the IBM Tokyo Research Laboratory is called Reversible Visible Watermarking for applications such as on-line content distribution.  Here, the image is marked with a Reversible Visible Watermark before distribution or posting on the Internet, and the watermarked image content serves as a "teaser" that users may view or obtain for free. Then, the watermark can be removed to recreate the unmarked image by using a "vaccine" program
that is available for an additional fee.

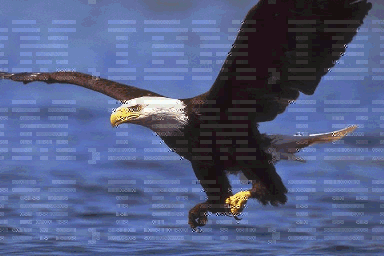

Figure 4. An image marked with a reversible visible watermark.

Fragile Image Watermarks

IBM is investigating multiple techniques for fragile image watermarking that would determine whether an image has been altered since the time when it was watermarked. The targeted applications for this "image authentication" include detection of altered (or replaced) image content within a digital library, and the "secure digital camera." We will mention two such techniques.

Both techniques require an image-specific authentication key to extract the watermark from the watermarked image. This makes it more difficult for a malicious party to detect or estimate the watermark in a watermarked image (which could lead to it being inserted in altered content to falsify the no-change condition). Both techniques permit the display of the extracted watermarked as an image for visual authentication, and both permit automatic authentication. Both can localize the changes that have taken place in an altered image.

One technique, developed at the IBM Tokyo Research Laboratory, is used to detect the presence of tampering in an image. A layer of robust watermark is embedded into the image simply to identify that the image is an authenticated image, then another layer of fragile watermark is embedded on top of the same image, which is designed to be extremely sensitive to the alteration of the image. The first layer tells the user to check the second layer; the second layer acts as an "alarm" that rings if the image has been tampered with.

Another technique {MY}, developed at the Watson Research Center, uses error diffusion to preserve the color content of an image as it undergoes watermarking; this can be important if the images are to be used in a color-critical application. This technique also retains a partial watermark if the watermarked image is cropped; the extraction process can determine whether the remaining portion has otherwise been altered.

Robust Image Watermarks

IBM is also investigating multiple techniques for robust image watermarking that would apply watermarks that could later help identify the owner or recipient of an image. We will briefly discuss two such techniques.

Both techniques require an image-specific watermark key to extract the watermark from the watermarked image. This makes it more difficult for a malicious party to detect or estimate the watermark (which could lead to it being removed to delete evidence of ownership). Both techniques insert the watermark data many times; this redundancy permits the watermark extraction to work more reliably. Neither technique requires that an unmarked image be present in order to extract a watermark.

One variation, a suite of technologies called DataHidingTM, was developed at the IBM Tokyo Research Laboratory to allow users to embed invisible digital data into the digital content. The target media range from still image, to video, and to audio data. This suite of technologies has a great deal of flexibility in the amount of data that can be embedded (as well as the level of robustness). Also, the data can be automatically extracted and detected without human observation or interaction.

In still image and video DataHidingTM, the data to be embedded is converted to a binary bitstream and embedded into the image by altering the luminance level of the pixels following a set of pre-defined rules. The level of alteration to each pixel is based on baseband  image analysis (baseband means "before compression") to ensure the preservation of the image quality. Data embedded by using this algorithm was verified to survive normal image processing as well as JPEG compression rations up to 1:30. For video DataHidingTM, embedding 4-bits of control data, was verified to survive a combination of normal video processing, MPEG compression, digital-to-analog-to-digital video conversion, as well as the recording to analog video tape.

The other variation is based on a single technique {GB2}, developed at the IBM Watson Research Center, that modulates the brightness of the image's pixels with a random noise field to embed the watermark. The color of the pixels is not altered in the watermarking so that image color is preserved; this may be important if the images are to be used in a color-critical application. When a watermark is extracted from a watermarked image, the watermark is normally displayed; even of the watermark has been damaged by processing applied to the watermarked image, a visual inspection will quickly verify the resemblance of the inserted and extracted watermarks. In limited experiments, this technique has been verified to produce watermarks that survive printing and re-scanning, reduction by a factor of two, and JPEG compression by a factor of 15.

Conclusions

Digital watermarking is an exciting new field: It is exciting for researchers because it is a new field and there is an opportunity to do pioneering work. It is exciting for entertainment companies, museums and libraries because it offers the promise of better protecting their multimedia content from piracy. It is exciting for consumers because better multimedia protection could lead to cheaper, better, and more freely available entertainment and educational materials.

However, the excitement about the promise of watermarking should not mask the state of its fulfillment. In spite of the exaggerated claims often made about digital watermarking, it is a new and largely unplowed field. Many applications have been proposed for watermarking; most of them remain unproven. Few careful examinations of the technical requirements of the proposed applications have been undertaken. A common application requirement is that the watermark resist attacks that would remove it (or insert a false watermark). Some watermarks, described in their advertising as being attack-resistant, may be accidentally removed by unintended attacks such as cropping, reduction, or compression. Other techniques exhibit greater (but differing) degrees of effectiveness in resisting attacks, but all offer limited resistance. Few watermarking techniques have been tested by a talented and well-motivated attacker. But increasing the cost of wrongdoing is a potentially powerful incentive to act properly.

Even though we point out that digital watermarking has many limitations, we do not believe watermarks are without merit or importance. Indeed, much of the value of watermarking may be gained by watermarking content with an imperfect scheme. Creating the possibility that wrongdoing may be identified is an incentive to act properly, even when there is no certainty that wrongdoing will be identified.

We, and our IBM colleagues, have listened to many media content owners who have proposed watermarking applications, and we have proposed some scenarios ourselves; a number of these proposed applications were discussed above. We have considered the technical requirements of these applications and created watermarking techniques to address them. Compared with other techniques described in the literature, we believe ours to be relatively effective, if imperfect, in addressing the requirements of the applications.

We feel obligated to emphasize that digital watermarking does not stand alone. It as a one of a triad of technologies (the other two being encryption and digital signatures) that together can offer a reasonable level of copyright protection at a reasonable cost. Because of the many protection and watermarking options available, addressing an application is not a simple matter. The technical requirements of the specific application should first be studied. Then, the watermarking technique (or techniques) most appropriate to that application should be chosen and used in combination with the other protection technologies that best meet the needs of that application. No tailor would sell the same suit to all customers; nor should we.


Bibliography

{CD}
C. Dwork, "Copyright? Protection?", in The Mathematics of Information Coding, edited by Cybenko, O'Leary, and Rissanen, (to appear).
{FM}
F. Mintzer, G.B. Braudaway, and M.M. Yeung, "Effective and Ineffective Digital Watermarks," Proceedings of IEEE ICIP'97, Santa Barbara, CA, Oct. 1997.
{FM2}
F.C. Mintzer, et. al., "Towards On-Line Worldwide Access to Vatican Library Materials," IBM J. of Res. and Develop, pp. 139-162, March 1996.
{GB1}
G. Braudaway, K.A. Magerlein, and F. Mintzer, "Protecting Publicly Available Images with a Visible Image Watermark," IS&T/SPIE Symposium on Elect. Imaging Sci. and Tech., Proceedings of Symposium on Optical Security and Counterfeit Deterrence Techniques, San Jose, CA, Feb. 1996.
{GB2}
G. Braudaway, "Protecting Publicly Available Images with an Invisible Image Watermark," Proceedings of IEEE ICIP'97, Santa Barbara, CA, Oct. 1997.
{HB}
H. Berghel, "Watermarking Cyberspace", Communications of the ACM, Vol. 40, No. 11, November 1997.
{HG}
H.M. Gladney, F.C. Mintzer, and F. Schiattarella, "Safeguarding Digital Library Contents and Users: Digital Images of Treasured Antiquities," D-Lib Magazine, http://www.dlib.org/dlib/july97/vatican/07gladney.html, July 1997.
{IC}
Ingemar J. Cox, Jean-Paul M.G. Linnartz, "Public watermarks and resistance to tampering", IEEE International Conference on Image Processing, Oct. 1997.
{MY}
M.M Yeung and F. Mintzer, "An Invisible Watermarking Technique for Image Verification," Proceedings of IEEE ICIP'97, Santa Barbara, CA, Oct. 1997.
{SC}
S. Craver, N. Memon, B.L. Yeo, and M.M Yeung, "Resolving Rightful Ownership with Invisible Watermarking Techniques: Limitations, Attacks and Implications," IEEE JSAC, March 1997.


Footnotes:

  1. It is even possible to forge a mark ex post facto. Many schemes can be run in reverse: using the naturally occurring noise in an image, it is possible to calculate a key that looks like a valid watermark. Such a watermark could say anything: an evil publisher could assert that a piece of content belongs to him, when in fact it is not.


Copyright and Disclaimer Notice

(C) Copyright IBM Corp. 1997. All Rights Reserved. Copies may be printed and distributed, provided that no changes are made to the content, that the entire document including the attribution header and this copyright notice is printed or distributed, and that this is done free of charge.

We have written for the usual reasons of scholarly communication. This report does allude to technologies in early phases of definition and development, including IBM property partially implemented in products. However, the information it provides is strictly on an as-is basis, without express or implied warranty of any kind, and without express or implied commitment to implement anything described or alluded to or provide any product or service. IBM reserves the right to change its plans, designs, and defined interfaces at any time. Therefore, use of the information in this report is at the reader's own risk.

Intellectual property management is fraught with policy, legal, and economic issues. Nothing in this report should be construed as an adoption by IBM of any policy position or recommendation.
